Working With IgniteUI Grid Control




  •
  •
  •
  •
  •
  •
  •
  •
  •

In this post we will see how we can use an IgniteUI grid in our MVC project. IgniteUI is a product kit introduced by the company Infragistics. Here we are going to use the Grid controls available in the kit. We will create an MVC application in Visual Studio. I hope you will like this.

Download source code

  • Working With IgniteUI Grid Control In MVC
  • Background

    As I am an MVP in C # Corner, I have got a chance to be a part of C# corner annual conference 2016, there we had been offered ultimate license of the IgniteUI product. I would like to thank Mr.Jason Beres and Mr.Dhananjay Kumar for this.

    Now let us come to the point, if you don’t have any license with, no worries you can always give an evaluation try. If you wish to do so, please download the toolkit from here.

    Prerequisites

    As I said in the introduction part, we are going to create an IgniteUI grid in MVC application, so you must have a visual studio installed in your machine.

  • Visual Studio
  • SQL
  • Table of Contents

  • Download and install IgniteUI
  • Configure MVC application
  • Set up database
  • Creating models and entity
  • Creating IgniteUI Grid
  • Download and install IgniteUI

    Once you download the needed files from the download link provided above, you are good to go and install it in your machine. Extract the downloaded file. Now double click on the exe file named Infragistics_20161_Platform. Please apply your license key if you have such a one, or you can use it as a trial. I am going to apply the license key I got.

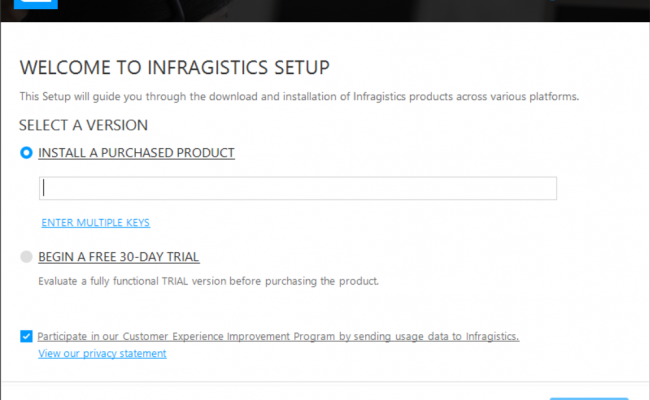

    Apply License Key

    Apply License Key

    Select the components you need.

    Platform Installer

    Platform Installer

    Now the installing will get started.

    Installing IgniteUI

    Installing IgniteUI

    Once the installing is finished, you will see a pop up as preceding. And you will be given a chance to register your product there and be a part of the forum and community.

    Install Finished

    Install Finished

    Configure MVC application

    As you have finished your installing, we can create a MVC application now. Open your Visual Studio and click on new project. Name your project, here I am going to name my project as IgniteUIGrid. Select MVC template and click OK.

    Click on the reference and add DLL reference of IgiteUI from C:\Program Files (x86)\Infragistics\2016.1\Ignite UI\MVC\MVC6\Bin\dnx451 or from which ever the folder you installed IgniteUI.

    Add IgniteUI Reference

    Add IgniteUI Reference

    So we have set our application ready for action.

    Set up database

    USE [master]
    GO

    /****** Object:  Database [TrialsDB]    Script Date: 5/12/2016 10:56:41 AM ******/
    CREATE DATABASE [TrialsDB]
     CONTAINMENT = NONE
     ON  PRIMARY
    ( NAME = N'TrialsDB', FILENAME = N'C:\Program Files\Microsoft SQL Server\MSSQL11.MSSQLSERVER\MSSQL\DATA\TrialsDB.mdf' , SIZE = 3072KB , MAXSIZE = UNLIMITED, FILEGROWTH = 1024KB )
     LOG ON
    ( NAME = N'TrialsDB_log', FILENAME = N'C:\Program Files\Microsoft SQL Server\MSSQL11.MSSQLSERVER\MSSQL\DATA\TrialsDB_log.ldf' , SIZE = 1024KB , MAXSIZE = 2048GB , FILEGROWTH = 10%)
    GO

    ALTER DATABASE [TrialsDB] SET COMPATIBILITY_LEVEL = 110
    GO

    IF (1 = FULLTEXTSERVICEPROPERTY('IsFullTextInstalled'))
    begin
    EXEC [TrialsDB].[dbo].[sp_fulltext_database] @action = 'enable'
    end
    GO

    ALTER DATABASE [TrialsDB] SET ANSI_NULL_DEFAULT OFF
    GO

    ALTER DATABASE [TrialsDB] SET ANSI_NULLS OFF
    GO

    ALTER DATABASE [TrialsDB] SET ANSI_PADDING OFF
    GO

    ALTER DATABASE [TrialsDB] SET ANSI_WARNINGS OFF
    GO

    ALTER DATABASE [TrialsDB] SET ARITHABORT OFF
    GO

    ALTER DATABASE [TrialsDB] SET AUTO_CLOSE OFF
    GO

    ALTER DATABASE [TrialsDB] SET AUTO_CREATE_STATISTICS ON
    GO

    ALTER DATABASE [TrialsDB] SET AUTO_SHRINK OFF
    GO

    ALTER DATABASE [TrialsDB] SET AUTO_UPDATE_STATISTICS ON
    GO

    ALTER DATABASE [TrialsDB] SET CURSOR_CLOSE_ON_COMMIT OFF
    GO

    ALTER DATABASE [TrialsDB] SET CURSOR_DEFAULT  GLOBAL
    GO

    ALTER DATABASE [TrialsDB] SET CONCAT_NULL_YIELDS_NULL OFF
    GO

    ALTER DATABASE [TrialsDB] SET NUMERIC_ROUNDABORT OFF
    GO

    ALTER DATABASE [TrialsDB] SET QUOTED_IDENTIFIER OFF
    GO

    ALTER DATABASE [TrialsDB] SET RECURSIVE_TRIGGERS OFF
    GO

    ALTER DATABASE [TrialsDB] SET  DISABLE_BROKER
    GO

    ALTER DATABASE [TrialsDB] SET AUTO_UPDATE_STATISTICS_ASYNC OFF
    GO

    ALTER DATABASE [TrialsDB] SET DATE_CORRELATION_OPTIMIZATION OFF
    GO

    ALTER DATABASE [TrialsDB] SET TRUSTWORTHY OFF
    GO

    ALTER DATABASE [TrialsDB] SET ALLOW_SNAPSHOT_ISOLATION OFF
    GO

    ALTER DATABASE [TrialsDB] SET PARAMETERIZATION SIMPLE
    GO

    ALTER DATABASE [TrialsDB] SET READ_COMMITTED_SNAPSHOT OFF
    GO

    ALTER DATABASE [TrialsDB] SET HONOR_BROKER_PRIORITY OFF
    GO

    ALTER DATABASE [TrialsDB] SET RECOVERY FULL
    GO

    ALTER DATABASE [TrialsDB] SET  MULTI_USER
    GO

    ALTER DATABASE [TrialsDB] SET PAGE_VERIFY CHECKSUM
    GO

    ALTER DATABASE [TrialsDB] SET DB_CHAINING OFF
    GO

    ALTER DATABASE [TrialsDB] SET FILESTREAM( NON_TRANSACTED_ACCESS = OFF )
    GO

    ALTER DATABASE [TrialsDB] SET TARGET_RECOVERY_TIME = 0 SECONDS
    GO

    ALTER DATABASE [TrialsDB] SET  READ_WRITE
    GO


    Create table with data

    USE [TrialsDB]
    GO
    /****** Object:  Table [dbo].[Product]    Script Date: 5/12/2016 10:54:48 AM ******/
    SET ANSI_NULLS ON
    GO
    SET QUOTED_IDENTIFIER ON
    GO
    CREATE TABLE [dbo].[Product](
    	[ProductID] [int] NOT NULL,
    	[Name] [nvarchar](max) NOT NULL,
    	[ProductNumber] [nvarchar](25) NOT NULL,
    	[MakeFlag] [bit] NOT NULL,
    	[FinishedGoodsFlag] [bit] NOT NULL,
    	[Color] [nvarchar](15) NULL,
    	[SafetyStockLevel] [smallint] NOT NULL,
    	[ReorderPoint] [smallint] NOT NULL,
    	[StandardCost] [money] NOT NULL,
    	[ListPrice] [money] NOT NULL,
    	[Size] [nvarchar](5) NULL,
    	[SizeUnitMeasureCode] [nchar](3) NULL,
    	[WeightUnitMeasureCode] [nchar](3) NULL,
    	[Weight] [decimal](8, 2) NULL,
    	[DaysToManufacture] [int] NOT NULL,
    	[ProductLine] [nchar](2) NULL,
    	[Class] [nchar](2) NULL,
    	[Style] [nchar](2) NULL,
    	[ProductSubcategoryID] [int] NULL,
    	[ProductModelID] [int] NULL,
    	[SellStartDate] [datetime] NOT NULL,
    	[SellEndDate] [datetime] NULL,
    	[DiscontinuedDate] [datetime] NULL,
    	[rowguid] [uniqueidentifier] ROWGUIDCOL  NOT NULL,
    	[ModifiedDate] [datetime] NOT NULL
    ) ON [PRIMARY] TEXTIMAGE_ON [PRIMARY]
    GO
    INSERT [dbo].[Product] ([ProductID], [Name], [ProductNumber], [MakeFlag], [FinishedGoodsFlag], [Color], [SafetyStockLevel], [ReorderPoint], [StandardCost], [ListPrice], [Size], [SizeUnitMeasureCode], [WeightUnitMeasureCode], [Weight], [DaysToManufacture], [ProductLine], [Class], [Style], [ProductSubcategoryID], [ProductModelID], [SellStartDate], [SellEndDate], [DiscontinuedDate], [rowguid], [ModifiedDate]) VALUES (1, N'Adjustable Race', N'AR-5381', 0, 0, NULL, 1000, 750, 0.0000, 0.0000, NULL, NULL, NULL, NULL, 0, NULL, NULL, NULL, NULL, NULL, CAST(0x0000921E00000000 AS DateTime), NULL, NULL, N'694215b7-08f7-4c0d-acb1-d734ba44c0c8', CAST(0x00009A5C00A53CF8 AS DateTime))
    INSERT [dbo].[Product] ([ProductID], [Name], [ProductNumber], [MakeFlag], [FinishedGoodsFlag], [Color], [SafetyStockLevel], [ReorderPoint], [StandardCost], [ListPrice], [Size], [SizeUnitMeasureCode], [WeightUnitMeasureCode], [Weight], [DaysToManufacture], [ProductLine], [Class], [Style], [ProductSubcategoryID], [ProductModelID], [SellStartDate], [SellEndDate], [DiscontinuedDate], [rowguid], [ModifiedDate]) VALUES (2, N'Bearing Ball', N'BA-8327', 0, 0, NULL, 1000, 750, 0.0000, 0.0000, NULL, NULL, NULL, NULL, 0, NULL, NULL, NULL, NULL, NULL, CAST(0x0000921E00000000 AS DateTime), NULL, NULL, N'58ae3c20-4f3a-4749-a7d4-d568806cc537', CAST(0x00009A5C00A53CF8 AS DateTime))
    INSERT [dbo].[Product] ([ProductID], [Name], [ProductNumber], [MakeFlag], [FinishedGoodsFlag], [Color], [SafetyStockLevel], [ReorderPoint], [StandardCost], [ListPrice], [Size], [SizeUnitMeasureCode], [WeightUnitMeasureCode], [Weight], [DaysToManufacture], [ProductLine], [Class], [Style], [ProductSubcategoryID], [ProductModelID], [SellStartDate], [SellEndDate], [DiscontinuedDate], [rowguid], [ModifiedDate]) VALUES (3, N'BB Ball Bearing', N'BE-2349', 1, 0, NULL, 800, 600, 0.0000, 0.0000, NULL, NULL, NULL, NULL, 1, NULL, NULL, NULL, NULL, NULL, CAST(0x0000921E00000000 AS DateTime), NULL, NULL, N'9c21aed2-5bfa-4f18-bcb8-f11638dc2e4e', CAST(0x00009A5C00A53CF8 AS DateTime))
    INSERT [dbo].[Product] ([ProductID], [Name], [ProductNumber], [MakeFlag], [FinishedGoodsFlag], [Color], [SafetyStockLevel], [ReorderPoint], [StandardCost], [ListPrice], [Size], [SizeUnitMeasureCode], [WeightUnitMeasureCode], [Weight], [DaysToManufacture], [ProductLine], [Class], [Style], [ProductSubcategoryID], [ProductModelID], [SellStartDate], [SellEndDate], [DiscontinuedDate], [rowguid], [ModifiedDate]) VALUES (4, N'Headset Ball Bearings', N'BE-2908', 0, 0, NULL, 800, 600, 0.0000, 0.0000, NULL, NULL, NULL, NULL, 0, NULL, NULL, NULL, NULL, NULL, CAST(0x0000921E00000000 AS DateTime), NULL, NULL, N'ecfed6cb-51ff-49b5-b06c-7d8ac834db8b', CAST(0x00009A5C00A53CF8 AS DateTime))
    INSERT [dbo].[Product] ([ProductID], [Name], [ProductNumber], [MakeFlag], [FinishedGoodsFlag], [Color], [SafetyStockLevel], [ReorderPoint], [StandardCost], [ListPrice], [Size], [SizeUnitMeasureCode], [WeightUnitMeasureCode], [Weight], [DaysToManufacture], [ProductLine], [Class], [Style], [ProductSubcategoryID], [ProductModelID], [SellStartDate], [SellEndDate], [DiscontinuedDate], [rowguid], [ModifiedDate]) VALUES (316, N'Blade', N'BL-2036', 1, 0, NULL, 800, 600, 0.0000, 0.0000, NULL, NULL, NULL, NULL, 1, NULL, NULL, NULL, NULL, NULL, CAST(0x0000921E00000000 AS DateTime), NULL, NULL, N'e73e9750-603b-4131-89f5-3dd15ed5ff80', CAST(0x00009A5C00A53CF8 AS DateTime))
    INSERT [dbo].[Product] ([ProductID], [Name], [ProductNumber], [MakeFlag], [FinishedGoodsFlag], [Color], [SafetyStockLevel], [ReorderPoint], [StandardCost], [ListPrice], [Size], [SizeUnitMeasureCode], [WeightUnitMeasureCode], [Weight], [DaysToManufacture], [ProductLine], [Class], [Style], [ProductSubcategoryID], [ProductModelID], [SellStartDate], [SellEndDate], [DiscontinuedDate], [rowguid], [ModifiedDate]) VALUES (317, N'LL Crankarm', N'CA-5965', 0, 0, N'Black', 500, 375, 0.0000, 0.0000, NULL, NULL, NULL, NULL, 0, NULL, N'L ', NULL, NULL, NULL, CAST(0x0000921E00000000 AS DateTime), NULL, NULL, N'3c9d10b7-a6b2-4774-9963-c19dcee72fea', CAST(0x00009A5C00A53CF8 AS DateTime))
    INSERT [dbo].[Product] ([ProductID], [Name], [ProductNumber], [MakeFlag], [FinishedGoodsFlag], [Color], [SafetyStockLevel], [ReorderPoint], [StandardCost], [ListPrice], [Size], [SizeUnitMeasureCode], [WeightUnitMeasureCode], [Weight], [DaysToManufacture], [ProductLine], [Class], [Style], [ProductSubcategoryID], [ProductModelID], [SellStartDate], [SellEndDate], [DiscontinuedDate], [rowguid], [ModifiedDate]) VALUES (318, N'ML Crankarm', N'CA-6738', 0, 0, N'Black', 500, 375, 0.0000, 0.0000, NULL, NULL, NULL, NULL, 0, NULL, N'M ', NULL, NULL, NULL, CAST(0x0000921E00000000 AS DateTime), NULL, NULL, N'eabb9a92-fa07-4eab-8955-f0517b4a4ca7', CAST(0x00009A5C00A53CF8 AS DateTime))


    Creating models and entity

    If you don’t know how to create an entity in your solution, please read that here. I have mentioned the steps to be followed in that article. Once you have created the entity, you are good to go.

    Here I am assuming that you have created an entity and got a model class as preceding.

    //------------------------------------------------------------------------------
    // <auto-generated>
    //     This code was generated from a template.
    //
    //     Manual changes to this file may cause unexpected behavior in your application.
    //     Manual changes to this file will be overwritten if the code is regenerated.
    // </auto-generated>
    //------------------------------------------------------------------------------

    namespace IgniteUIGrid.Models
    {
        using System;
        using System.Collections.Generic;

        public partial class Product
        {
            public int ProductID { get; set; }
            public string Name { get; set; }
            public string ProductNumber { get; set; }
            public bool MakeFlag { get; set; }
            public bool FinishedGoodsFlag { get; set; }
            public string Color { get; set; }
            public short SafetyStockLevel { get; set; }
            public short ReorderPoint { get; set; }
            public decimal StandardCost { get; set; }
            public decimal ListPrice { get; set; }
            public string Size { get; set; }
            public string SizeUnitMeasureCode { get; set; }
            public string WeightUnitMeasureCode { get; set; }
            public Nullable<decimal> Weight { get; set; }
            public int DaysToManufacture { get; set; }
            public string ProductLine { get; set; }
            public string Class { get; set; }
            public string Style { get; set; }
            public Nullable<int> ProductSubcategoryID { get; set; }
            public Nullable<int> ProductModelID { get; set; }
            public System.DateTime SellStartDate { get; set; }
            public Nullable<System.DateTime> SellEndDate { get; set; }
            public Nullable<System.DateTime> DiscontinuedDate { get; set; }
            public System.Guid rowguid { get; set; }
            public System.DateTime ModifiedDate { get; set; }
        }
    }


    Creating IgniteUI Grid

    Now we are going to create a controller and view to show the grid. Click on the controller-> Add-> Controller. That will show you a pop up as preceding.

    Ignite UI Controlelr With View

    Ignite UI Controlelr With View

    Have you noticed that there are two new items, Ignite UI controller with view and Ignite UI view. Click on the first option. This will generate a controller and a view according to your model selection. Lets do that.

    In the next pop up you can see the options to set your view and also your IgniteUI control.

    Configure view and controller

    Configure view and controller

    In the next tab, you can configure your widget according to your need. Now please select the features you would like to have in your grid. As of now I am going to select Filtering, Sorting, paging.

    Configure IgniteUI widget

    Configure IgniteUI widget

    This will generate a controller named Scaffold and a view accordingly, Let us rename it to MyGrid. So your MyGridController.cs file will be looking as preceding.

    using System;
    using System.Collections.Generic;
    using System.Linq;
    using System.Data.Entity;
    using System.Web;
    using System.Web.Mvc;

    using Infragistics.Web.Mvc;

    namespace IgniteUIGrid.Controllers
    {
        public class MyGridController : Controller
        {
            private IgniteUIGrid.Models.TrialsDBEntities db = new IgniteUIGrid.Models.TrialsDBEntities();

            public ActionResult View()
            {
                var model = db.Products.AsQueryable();
                return View(model);
            }
        }
    }


    Now what about the view? Yes it is also being generated for you. Cool right? Below is the view generated.

    @using Infragistics.Web.Mvc;
    @model IQueryable<IgniteUIGrid.Models.Product>

    @(Html.Infragistics()
        .Grid(Model)
        .ID("igGrid")
        .Width("100%")
        .AutoGenerateColumns(false)
        .Columns(column =>
        {
        })
        .Features(f =>
        {
    		f.Filtering()
    			.Mode(FilterMode.Simple);
    		f.Paging()
    			.PageSize(5);
    		f.Resizing();
    		f.Sorting()
    			.Mode(SortingMode.Single);
        })
        .DataBind()
        .Render())


    By default grid width is set to 600px, here I have changed it to 100%.

    Once you have set everything, go to your shared view folder, open _Layout.cshtml and add the following references to the view.

     <!-- Ignite UI Required Combined CSS Files -->
        <link href="http://cdn-na.infragistics.com/igniteui/2016.1/latest/css/themes/infragistics/infragistics.theme.css" rel="stylesheet" />
        <link href="http://cdn-na.infragistics.com/igniteui/2016.1/latest/css/structure/infragistics.css" rel="stylesheet" />

        <script src="http://ajax.aspnetcdn.com/ajax/modernizr/modernizr-2.8.3.js"></script>
        <script src="http://code.jquery.com/jquery-1.9.1.min.js"></script>
        <script src="http://code.jquery.com/ui/1.10.3/jquery-ui.min.js"></script>

        <!-- Ignite UI Required Combined JavaScript Files -->
        <script src="http://cdn-na.infragistics.com/igniteui/2016.1/latest/js/infragistics.core.js"></script>
        <script src="http://cdn-na.infragistics.com/igniteui/2016.1/latest/js/infragistics.lob.js"></script>


    Now run your application, you can see a grid is populated as preceding.

    Ignite UI Grid

    Yes, you are right. It looks clumsy, we will solve this by selecting only the needed columns. For that you need to change the grid settings as follows.

    @(Html.Infragistics()
        .Grid(Model)
        .ID("igGrid")
        .Width("100%")
        .AutoGenerateColumns(false)
        .Columns(column =>
        {
            column.For(x => x.ProductID).HeaderText("Product ID").Width("30%");
            column.For(x => x.Name).HeaderText("Name").Width("30%");
            column.For(x => x.ProductNumber).HeaderText("Number").Width("20%");
            column.For(x => x.SellEndDate).HeaderText("Sell End Date").Width("20%");
            column.For(x => x.SellStartDate).HeaderText("Sell Start Date").Width("30%");
            column.For(x => x.Size).HeaderText("Size").Width("30%");
        })
        .Features(f =>
        {
            f.Filtering()
                .Mode(FilterMode.Simple);
            f.Paging()
                .PageSize(5);
            f.Resizing();
            f.Sorting()
                .Mode(SortingMode.Single);
        })
        .DataBind()
        .Render())


    Run your application and see the result.

    Ignite UI Grid With Only Selected Columns

    Ignite UI Grid With Only Selected Columns

    Now let us add few more columns, set the grid width, fix one column as stable (Should not move while scrolling), and set primary key. To add these features, you must change your settings as follows.

    @(Html.Infragistics()
        .Grid(Model)
        .ID("igGrid")
        .Width("100%")
        .Height("500px")
        .PrimaryKey("ProductID")
        .AutoGenerateColumns(false)
        .AutoGenerateLayouts(false)
        .Columns(column =>
        {
            column.For(x => x.ProductID).HeaderText("Product ID").Width("30%");
            column.For(x => x.Name).HeaderText("Name").Width("30%");
            column.For(x => x.ProductNumber).HeaderText("Number").Width("20%");
            column.For(x => x.SellEndDate).HeaderText("Sell End Date").Width("20%");
            column.For(x => x.SellStartDate).HeaderText("Sell Start Date").Width("30%");
            column.For(x => x.Size).HeaderText("Size").Width("30%");
        })
        .Features(f =>
        {
            f.Filtering()
                .Mode(FilterMode.Simple);
            f.Paging()
                .PageSize(5);
            f.Sorting()
                .Mode(SortingMode.Single);
            f.ColumnFixing().FixingDirection(ColumnFixingDirection.Left);
            f.ColumnFixing();
        })
        .DataBind()
        .Render())


    Now if you run your grid, you may get an error as infragistics.lob.js:160 Uncaught Error: Column Fixing requires a different column width setting. The width of column with key ProductID should be set in pixels.. This is why because of we have set the column width of our keys in percentage. Let us change it to pixel and try again.

    .Columns(column =>
        {
            column.For(x => x.ProductID).HeaderText("Product ID").Width("130px");
            column.For(x => x.Name).HeaderText("Name").Width("250px");
            column.For(x => x.ProductNumber).HeaderText("Number").Width("150px");
            column.For(x => x.SellEndDate).HeaderText("Sell End Date").Width("270px");
            column.For(x => x.SellStartDate).HeaderText("Sell Start Date").Width("270px");
            column.For(x => x.Size).HeaderText("Size").Width("130px");
            column.For(x => x.ListPrice).HeaderText("List Price").Width("150px");
        })


    Run your grid. You can see the option to fix the columns.

    Fix_column_in_Ignite_UI_Grid

    Fix_column_in_Ignite_UI_Grid

    So once you fix the column and try to scroll, the column you fixed will not move. You can set the same for other columns too.

    After_fixed_columns_in_Ignite_UI_Grid

    After_fixed_columns_in_Ignite_UI_Grid

    I hope you have got some knowledge about the Ignite UI grid control. That’s all for today. See you soon with other Ignite UI controls.

    Conclusion

    Did I miss anything that you may think which is needed? Could you find this post as useful? I hope you liked this article. Please share me your valuable suggestions and feedback.

    Your turn. What do you think?

    A blog isn’t a blog without comments, but do try to stay on topic. If you have a question unrelated to this post, you’re better off posting it on C# Corner, Code Project, Stack Overflow, Asp.Net Forum instead of commenting here. Tweet or email me a link to your question there and I’ll definitely try to help if I can.

    Kindest Regards
    Sibeesh Venu

    Footer With Address And Phones
